Pipeline Access

An innovative range of Access Units developed to simplify the method of incorporating access into large diameter pipelines, radically accelerating the process of installation and significantly improving site safety.

The units are designed to replace conventional concrete manholes, which are very large, cumbersome and extremely time consuming to build – often just to accommodate a slight change in direction of the pipeline.



Please see detailed product list below:

Bends

Description

Pipe Diameter Range (mm)

 Range of Angles (5˚ increments)

Typical Construction Details CAD Turret Detail

Stainless Steel Access Bend c/w Spigot for Riser (cover depth > 1.2m)

900 - 2250

5˚ - 90˚
Stainless Steel Access Bend c/w 700mm high turret (cover depth < 1.2m) 900 - 2250 5˚ - 90˚
Stainless Steel Non-Man-Entry Access Bend 900 - 2250 5˚ - 90˚
Stainless Steel Bend 900 - 2250 5˚ - 90˚ n/a

Access Pipe

Description

Pipe Diameter Range (mm)

Typical Construction Details CAD Turret Detail
Stainless Steel Access Pipe c/w Spigot for Riser (cover depth > 1.2m) 900 - 2250
Stainless Steel Access Pipe c/w 700mm high turret (cover depth < 1.2m) 900 - 2250
Stainless Steel Non-Man-Entry Access Pipe 900 - 2250

Access End Pipe

Description Pipe Diameter Range (mm) Typical Construction Details CAD Turret Detail

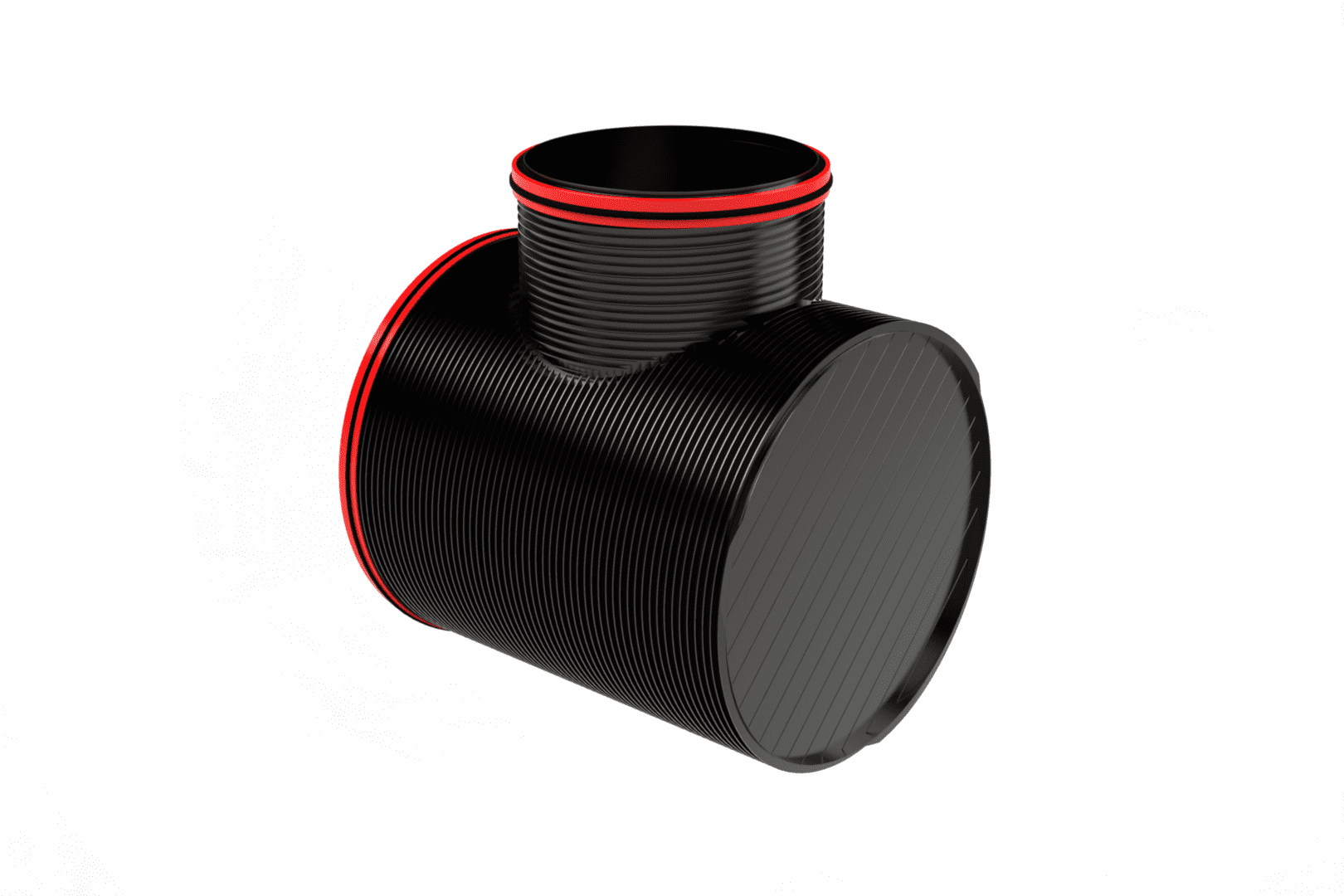

Stainless Steel Access End Pipe c/w Spigot for Riser (cover depth > 1.2m) 900 - 2250
Stainless Steel Access End Pipe c/w 700mm high turret (cover depth < 1.2m) 900 - 2250
Stainless Steel Non-Man-Entry Access End Pipe 900 - 2250

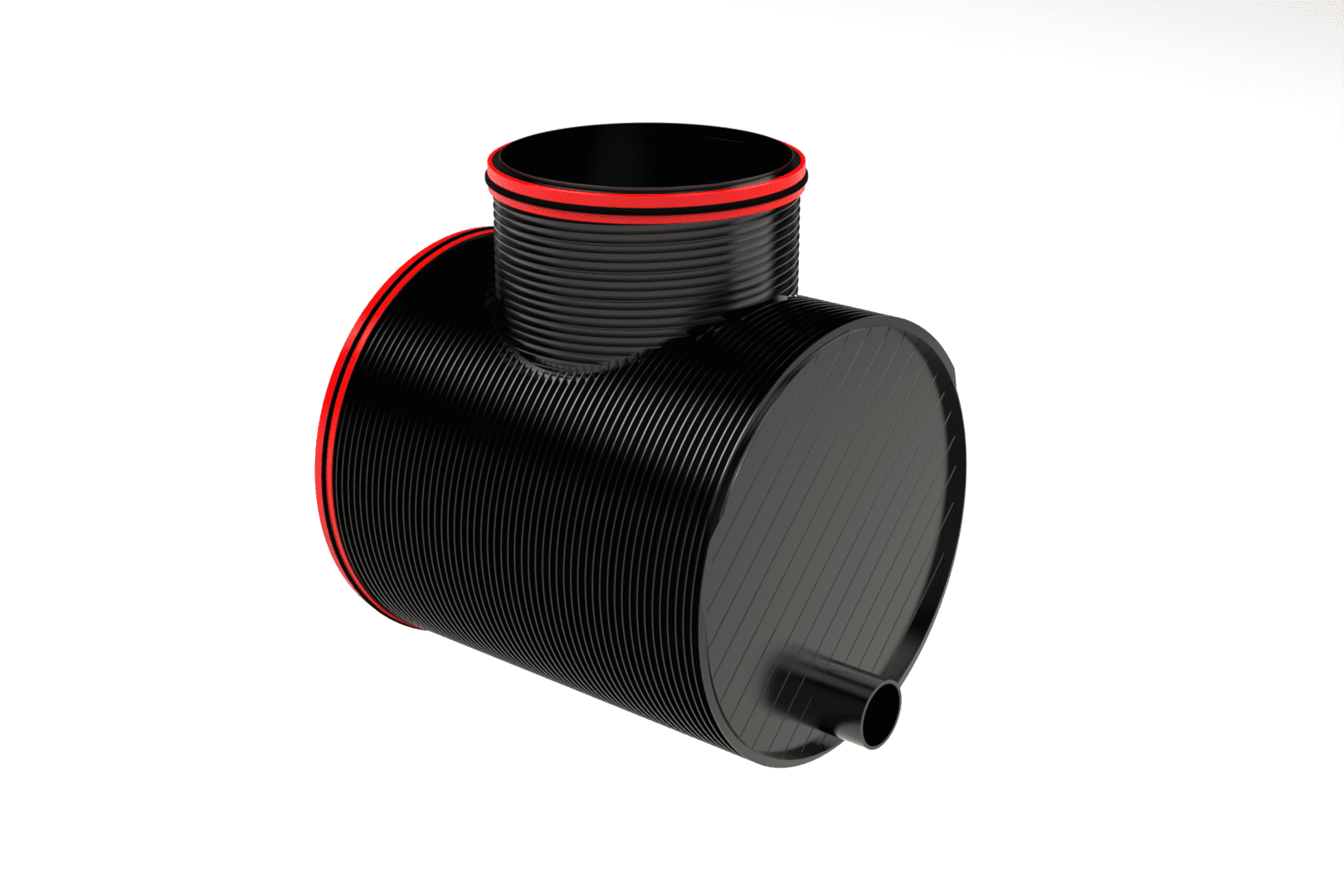

Stainless Steel Access End Pipe with level invert outlet c/w Spigot for Riser (cover depth > 1.2m) 900 - 2250
Stainless Steel Access End Pipe with level invert outlet c/w 700mm high turret (cover depth < 1.2m) 900 - 2250
Stainless Steel Non-Man-Entry Access End Pipe with level invert outlet 900 - 2250

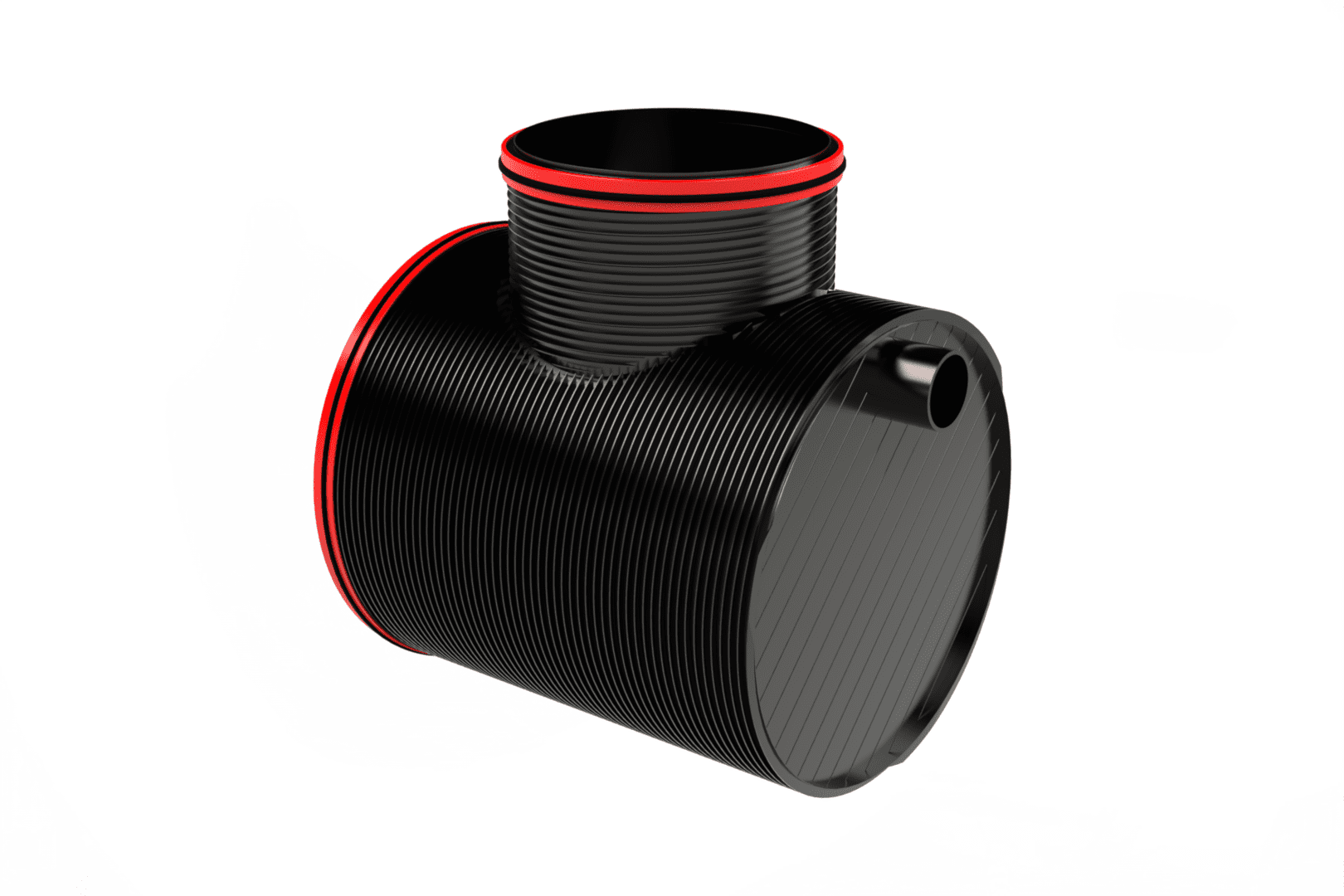

Stainless Steel Access End Pipe with level soffit inlet c/w Spigot for Riser (cover depth > 1.2m) 900 - 2250
Stainless Steel Access End Pipe with level soffit inlet c/w 700mm high turret (cover depth < 1.2m) 900 - 2250
Stainless Steel Non-Man-Entry Access End Pipe with level soffit inlet 900 - 2250

Turret Risers

Description Turret Diameters (mm) Typical Construction Details
1m High CSR Turret Riser 900, 1050 or 1200
2m High CSR Turret Riser 900, 1050 or 1200
3m High CSR Turret Riser 900, 1050 or 1200
Non Man Entry Riser Pipe - 3m Length 600
Ring Seal for Non Man Entry Riser Pipe (2 per riser) 600 - -
